VFFS Машина для упаковки порошка/Машина для упаковки муки

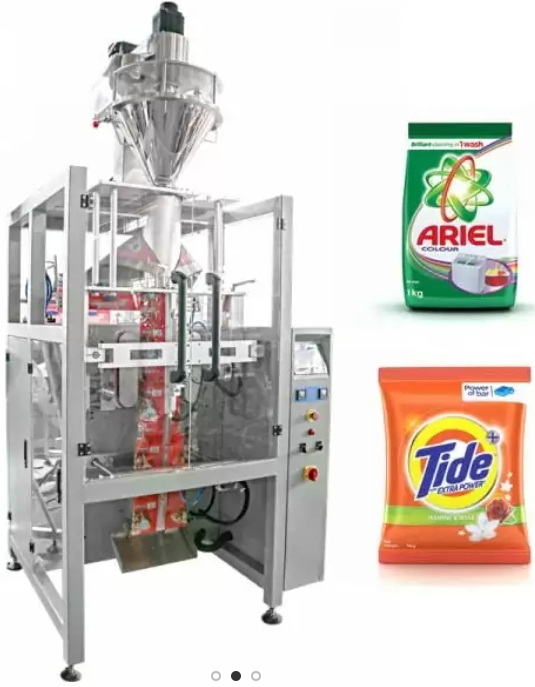

Vertical Form Fill Seal Powder Packing Machine
The Vertical Form Fill Seal (VFFS) Powder Packing Machine with an auger filler is designed for packaging non-flowing powders in the food, dairy, healthcare, and chemical industries. It is suitable for applications such as wheat flour, milk & coffee powder, starch, and seasonings & spicy powders, Facial mask powder, veterinary medicines and pesticides powder. The complete system of this machine includes:
- Screw conveyor feeder
- Auger filler dosing system
- Vertical form fill seal machine (VFFS)
- Finished product conveyor
- Accessory units
Key Advantages
- Simple and Robust Design: Engineered for easy operation and maintenance.
- PLC Controlled Functionality: Ensures precise control over the packaging process.
- Servo-Controlled Mechanisms: Features servo-controlled pulling belts and horizontal sealing for enhanced performance.
- Digital Temperature Control: Provides accurate temperature management for effective sealing.
- Self-Aligning Pulling Belts: Enhance operational efficiency and reduce downtime.
- Photo Sensor Registration: Ensures precise print mark registration.
- Accurate Bag Length Measurement: Utilizes an encoder for exact bag length measurement.
- Tool-less Forming Collar Assembly: Facilitates quick and easy changeovers.
- Convenient Back Seal Alignment: Simplifies the sealing process.
Customization Options
The machine can be customized with various options to enhance its functionality, including:
- Side gusseting assembly
- Block bottom assembly
- Nitrogen gas flushing
- Poly sealing jaws
- Static eliminator
- Forming tube exhaust
- Hole punch/handle punch
- Thermal transfer or laser printer
- Tear notch
- Hopper vibrator
- Indexing conveyor
This Vertical Form Fill Seal Powder Packing Machine provides an efficient and reliable solution for packaging powdered products across multiple industries, ensuring high-quality results with each cycle.
Technical Perameters:
Models |
JR-420 |
JR-520 |
JR-720 |
JR-800 |
|
Bag size |
Length: 60-300mm
Width: 60-200mm |
Length: 80-350mm
Width: 100-250mm |
Length: 100-450mm
Width: 140-350mm |
Length: 100-550mm
Width: 200-390mm |
|
Packing speed |
5-150 bags/min | 5-60 bags/min | 5-45 bags/min |
5-30 bags/min |
|
Maximum Film width |
420 mm | 520 mm | 730 mm |
800 mm |
|
Film thickness |
0.04-0.09 mm | 0.04-0.09 mm | 0.04-0.09 mm |
0.04-0.09 mm |
|
Air consumption |
0.6 MPa, 0.4 m3/min |
0.6 MPa, 0.5 m3/min | 0.8 MPa, 0.8 m3/min |
0.8 MPa, 0.8 m3/min |
|
Power source |
2.2 kW, 220 V, 50 Hz | 2.2 kW, 220 V, 50 Hz | 2.2 kW, 220 V, 50 Hz |
2.2 kW, 220 V, 50 Hz |
|
Overall Dimension |
1320 * 920 * 1392mm |
1500 * 1140 * 1540mm | 1360 * 1630 * 1900 mm |
157 * 1395 * 2460 mm |
| Weight | 450 kg | 680 kg | 900 kg |
1200 kg |
Доброе напоминание
Пожалуйста, предоставьте нам следующую информацию при отправке вашего запроса. На основе вашего сообщения мы предложим оптимальное решение для вашей справки. Спасибо.
-
- Размеры сумки
- Вес на мешок
- Ваш продукт
- Форма сумки
- Материал фильма
